GENERAL MONSOON ROLLER CRANK INSTALLATION

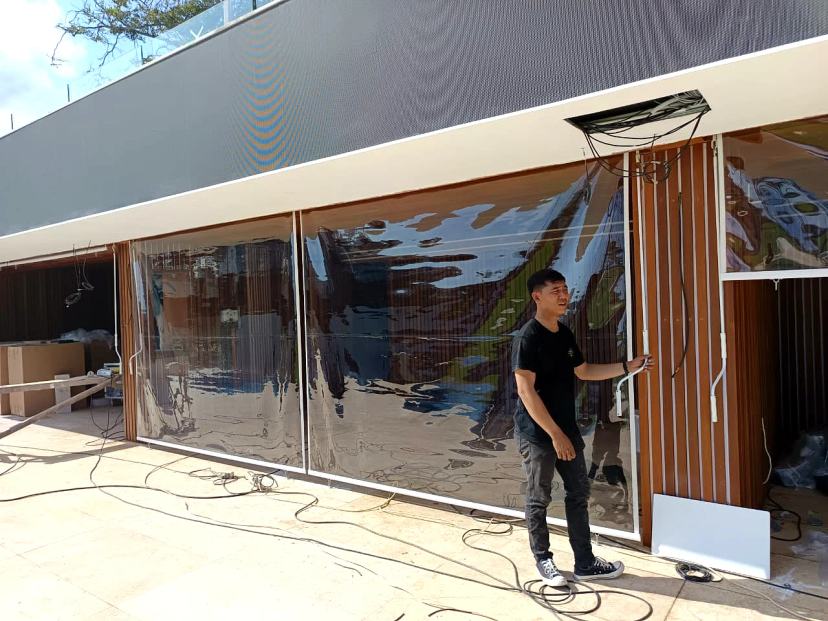

Monsoon Roller
Crank / Engkol
Mechanical hand-crank drive for Monsoon Roller using a dedicated bracket and idler control unit set with selectable crank handle lengths from 1.5 m to 3.0 m. Tube size is resolved per site engineering.
- Control
- Hand Crank
- Power
- None
- Handle Lengths
- 1.5 m to 3.0 m
- Application
- Outdoor
System Overview
Mechanical advantage. Crank-operated shade.
Monsoon Roller Crank / Engkol replaces side-chain reach with a detachable hand crank connected through a dedicated bracket and idler control unit set for mid-height exterior openings.
The system suits terraces and verandas where manual chain control is impractical but powered operation is not required. Tube diameter from 50 mm to 90 mm is confirmed during site engineering review.
Key System Benefits
- Dedicated hand crank control unit set
- Selectable crank handle lengths from 1.5 m to 3.0 m
- 100% mechanical operation, no electrical power
- Tube sizing resolved per site engineering
- Outdoor application for mid-height openings
- Published control unit and handle pricing
Common Applications
- Residential verandas and terraces→
- Villa outdoor dining areas→
- Mid-height exterior facade openings→
- Resort pool-edge openings→
- Commercial cafe terraces→
- Crank-accessible exterior openings→
Product Overview
Crank / Engkol
Monsoon Roller Crank
Crank / Engkol
Hand-crank mechanical drive for Monsoon Roller exterior shade using a bracket and idler control unit set with a selected detachable crank handle length.
Monsoon Roller Crank / Engkol is specified when exterior openings need reliable manual height control without electrical coordination and chain reach is impractical at mounting height.
Select crank handle length according to installation height and daily access. Control unit pricing is published separately from the detachable crank handle and from fabric or structure components confirmed during site review.
Specifications
System Specifications
Monsoon Roller Crank / Engkol operation, control unit pricing, and project guidance.
Control Unit
Rp 933.000
Bracket and idler set
Crank From
Rp 337.000
1.5 m hand crank handle
Handle Range
1.5 m to 3.0 m
Published crank handle lengths
Tube Options
50 mm to 90 mm
Resolved per site engineering
Operation
Hand Crank
100% mechanical drive
Operation & Control
How Monsoon Roller Crank / Engkol is operated day to day.
- Operating System
- Crank / Engkol
- Control
- Hand crank mechanical drive
- Operation
- Manual hand crank
- Power Requirement
- None
- Control Unit
- Bracket and idler set
- Application
- Outdoor
Crank Hardware Pricing
Published control unit and crank handle prices from the Monsoon pricelist.
Control unit from
Rp 933.000
Crank handles from Rp 337.000. Fabric and structure are quoted separately.
- Listed control unit and crank handle prices include PPN
- Tube diameter (50 mm to 90 mm) is resolved per site engineering
- Fabric panel and structure components are quoted separately from crank hardware
- Installation, transport, and project-specific hardware are confirmed during site review
Fabric
Published Monsoon Roller material specification.
2 published options
- 0.6 mm Clear PVC
- Published Monsoon Roller fabric only
Standard Package
What is included
Crank / Engkol hardware set for Monsoon Roller
- Hand Crank Control Unit (bracket and idler set)
- Selected detachable crank handle length
- Tube and exterior mounting hardware per site engineering
Crank / Engkol hardware covers the published control unit set and selected crank handle. Fabric panel, tube sizing, structure components, and installation are quoted separately according to opening dimensions and project conditions.
Installation is quoted separately according to project location, mounting conditions, and order volume.
Accessories
Available components
Component prices for Monsoon Roller Crank / Engkol
- Hand Crank Control UnitRp 933.000/ set
- 1.5 m Hand CrankRp 337.000/ pcs
- 2.0 m Hand CrankRp 405.000/ pcs
- 2.5 m Hand CrankRp 472.000/ pcs
- 3.0 m Hand CrankRp 540.000/ pcs
Example Projects
Installed in real openings.
Selected Monsoon Roller Crank / Engkol installations from the SharpPoint archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Other Monsoon Roller Systems
Explore other Monsoon Roller operating systems
Exterior Blinds | Monsoon Roller
Ready to specify Monsoon Roller Crank / Engkol?
From Rp 933.000 control unit set
Share your outdoor opening dimensions, preferred crank handle length, and mounting conditions. Our team will help confirm control unit pricing and Crank / Engkol configuration for your project.
